Black Plastic Mold Hot Runner Tooling 3D Drawing Solidworks Pro
Engineer Unigraphics
Detailed Descriptions :
plastic injection molding/ plastic injeciton molded parts
| Resin | ABS, PC, PC+GF, PC/ABS, PBT, PA6+GF, PA66+GF, PPS, PU, PP, PE, TPE,
TPU, LCP, Ultem, etc |
| Cavity No. | 1 / 2 / 4 / 8 / Multi |
| Mold Steel | P20, P20H, 718H, NAK80, 1.2311, H13, 1.2344, 420SS, S136, S-7 and
1.2767 |
| Qualified Suppliers | Mold base and mold steel from LKM, ASSAB, THYSSEN and DAIDO
Hot runner system from YUDO, MOLD-MASTER, HASCO, DME, HUSKY. |
| Injection System | Cold runner/ Hot Runner/3-Plate |
| Mould Life | 200,000-1,000,000 Cycles. |
| Software | 3D Modeling: Pro/ENGINEER , SolidWorks, Unigraphics
2D Drawing: Auto-CAD, E-drawing |
| Minimum Tolerance | Mold tolerance 0.005 mm, Part tolerance 0.02 mm |

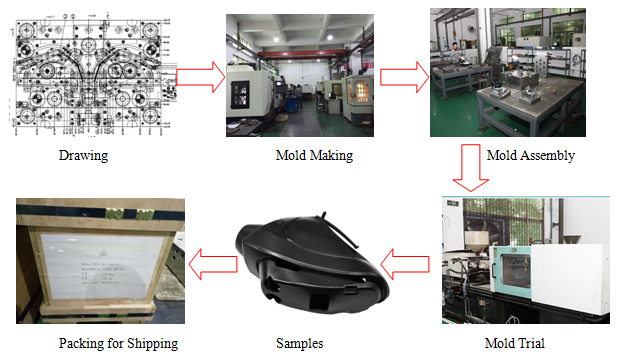

Product Presentation:
Order Processes
◆ RFQ Quotation ======= ◆ POn ======= ◆ DFM ======= ◆ Mold Design
◆ Design Approved ======= ◆ Steel Ordering =======◆ Machining
◆ Mold Trial ========◆ Sample Approved =======◆ Texture =======◆
Delivery
Mould Engineering
Our engineers uses DFM/PFM for all of parts from molds to
production, the molds design we will usually uses Mold flow
simulation review, from mold base, steel, electrode, runner system
the whole process inspection and report. Especially, the mold base,
steel, runner system we asked details certificated before
machining, during machining, our engineer is strictly check the
process to ensure each of stages parts perfect.
Our quality team is strictly complying with ISO system procedure to
control each of stages process. If our customers have any special
requirement, our engineer team will consult with you priority to
fix agreement specification to ensure product tolerance meet you.
Creatingway offers more secondary finishing service to meet
customers needs like painting, silk-screen,Ultrasonic welding,
packaging, assembly etc in order to make the product aesthetic as
customers needs, and provide more good solutions for good quality.
please kindly visit our product finishing service in details.
Machining Capacity:
With our wide range of mold making equipment, we can meet our
machining capacity.
﹒CNC Milling –High Speed
Stroke: 650x400mm
Max: 24000RPM
﹒EDM Mirrordick
Stroke: 500x400mm
﹒Excatitude Grinders
﹒Milling Machines
﹒Sodick Wire EDM-LS
Stroke: 400x350x400mm
﹒Wire EDM
Stroke: 500x400x500mm
﹒Coordinate Measuring Machine
﹒Video Measuring Machine
﹒Leeb Hardness Tester
Q & A :
◆ What do you need for quotation?
We need product 2D drawing or 3D file or specific sample with
detailed explanation;
need to know the materials request for product or mold, also
expected mold service life.
◆ What’s the percentage of automobile molds you made, what’s the
brands?
About 40% of total molds are for automobile.TOYOTA, HONDA, JAGUAR,
BMW and BUICK.
◆ How about the largest mold you ever made?
1400mm*1100mm*1000mm and 10 tons
◆ How about the tolerance?
Mold tolerance 0.005 mm, Product tolerance 0.02 mm
◆ Have you ever made over mold? What kind of materials you use?
We have good experience in over mold of
ABS+PC,PA+TPE,ABS+TPE,TPE+TPE.
◆ How about the steel you usually use?
We only use raw materials with good quality and origin certificate.
We use steel of P20, P20H, 718H, NAK80, 1.2311, H13, 1.2344, 420SS,
S136, S-7 and 1.2767.
They are all from famous suppliers, such as LKM, ASSAB, THYSSEN and
DAIDO.
◆ How many molds could you make every month?
35-40 SETS
◆ How about the standard components you use?
We only use standard components from brand supplier like LKM,
DAIDO, HASCO, DME.
◆ How long do you need for quotation?
German Precision, American Service, Chinese prices...
Exact quotation will be available within 2-3 working days once we
get sufficient information.
If you have any new inquiry, please keep NTT in mind and send us
for quoting.
We are happy to show you more about our quality, services, lead
time etc.
